Multiquip DCA10SPXU4C 10kW Single Phase Super Silent Diesel Generator
Original price was: $26,196.00.$15,843.34Current price is: $15,843.34.
Orders over $1,500.00 must be placed by phone. Call or text 707-332-0703 to order.
Description
The Multiquip DCA10SPXU4C 10kW Single Phase Diesel Generator
The DCA10SPXU4C 10kW Single Phase Diesel Generator is a 10 kW Single Phase generator with a 1.0 power factor and 120/240 volt output. It features an electronic governor control; an easy to read analog control panel; a sound attenuated, weatherproof steel housing that is lockable and designed with a single point lifting eye. Its easy to maintain design offers quick access to all filters and drain extensions.
Features DCA10SPXU4C 10kW Single Phase Diesel Generator
MQ Power WhisperWatt Super-Silent portable generators provide reliable power to meet the most demanding requirements. They are designed and built to withstand tough environments at construction sites, off the grid applications and provide dependable temporary power at entertainment venues and disaster recovery operations.
Dimensions 55 L x 26 W x 36 H. Dry weight 1107 lbs. Wet weight 1250 lbs.
Unit Specifications
| Prime Rating | 10 kW | |
| Standby Rating | 11 kW | |
| Generator RPM | 1800 | |
| Voltage – Single Phase | 120/240 V | |
| Generator Design | Revolving field, Self-ventilated, Drip-proof, Single bearing | |
| Voltage Regulation (No Load to Full Load) | ±0.5% | |
| Power Factor | 1.0 | |
| Armature Connection | Series | |
| Excitation | Brushless with AVR | |
| No. Poles | 4-pole | |
| Frequency | 60 Hz | |
| Frequency Regulation (steady state load) | ±0.25% | |
| Sound Level (Full Load at 23 ft.) | 61 dB(A) | |
Engine Specifications
| Make/Model | Kubota/ D1503 | |
| Emissions | EPA Tier 4 Certified | |
| Starting System | Electric | |
| Design | 3-cylinder, 4-cycle, Water cooled, Swirl Chamber | |
| Gross Engine Power Output | bhp | kW |
| Fuel Tank Capacity | 16.4 gal | 62.0 L |
| Fuel Consumption: | ||
| Full load | 0.97 gph | 3.7 lph |
| 3/4 load | 0.75 gph | 2.8 lph |
| 1/2 load | 0.58 gph | 2.2 lph |
| 1/4 load | 0.44 gph | 1.7 lph |
| Coolant Capacity | 1.85 gal | 7.0 L |
| Oil Capacity | 7.0 gal | 5.6 L |
| Battery | 12V 65Ah x 1 | |
TRLRMPXF (28 gallon fuel tank) Trailer Specifications
| Gross Vehicle Weight Rating (GVWR) | 2,000 lb | 907 kg |
| Gross Axle Weight Rating (GAWR) (ea.) | 2,000 lb | 907 kg |
| Tire Size | ST175/80D13 LR-C | |
| Tire Load Rating (ea.) | 1,360 lb | 617 kg |
| Wheel Bolt Pattern | 5 Lug on 4.5 in | |
| Fuel Tank Capacity | 28 gal | 105.92 L |
| Fits MQ Power Generator Models | DA7000 DCA10SPX DA7000 DCA10SPX |
|
TRLRMPXF (28 gallon fuel tank) Dimensions & Weights
| Overall Length | 98.60 in | 2504.4 mm |
| Overall Width | 55.50 in | 1409.7 mm |
| Overall Height | 22.0 in | 558.8 mm |
| Operating Weight | ||
| With Fuel | 558.8 lb | 247 kg |
| Without Fuel | 347 lb | 157.5 kg |
Documentation

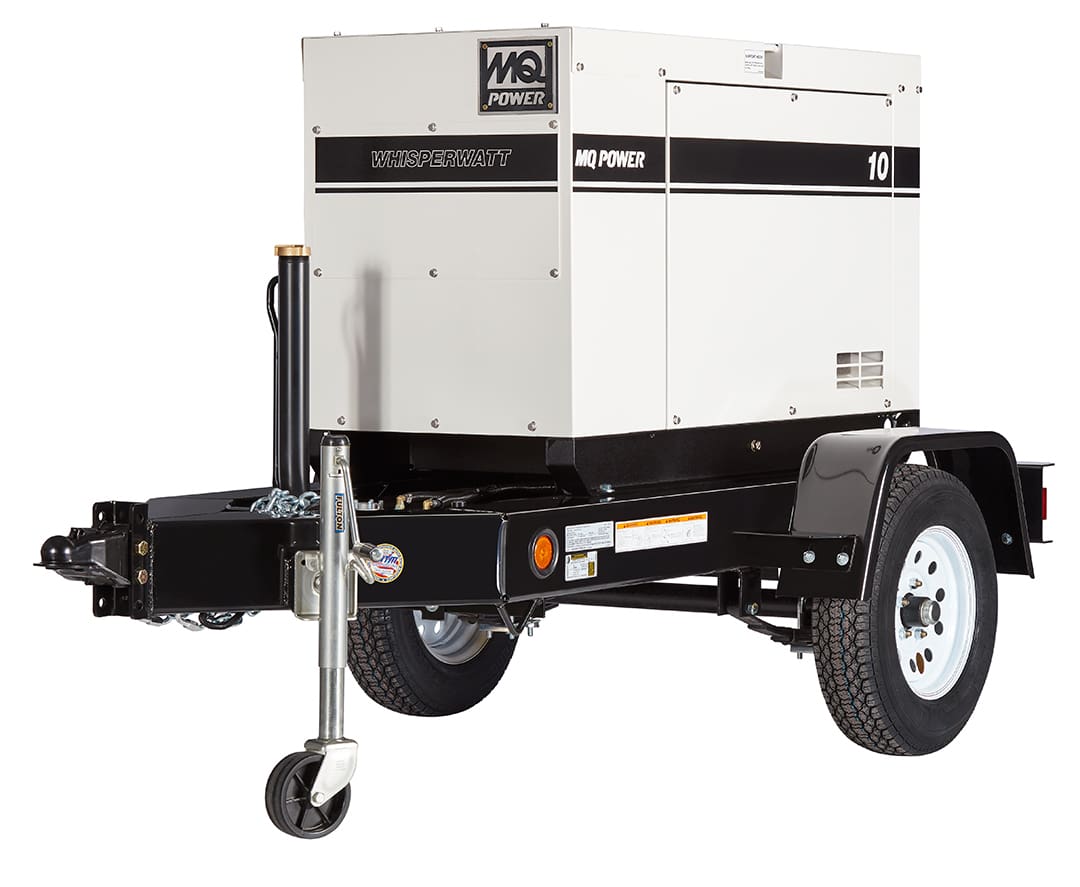

Generator can be placed on MQ Trailer Models TRLRMP, TRLRMPXF and TRLR75XF2
Multiquip DCA10SPXU4F product and specifications and data sheet. Printable/downloadable pdf file shown in a pop up window.
Multiquip TRLRMP trailer no fuel tank specifications and data sheet. Printable/downloadable pdf file shown in a pop up window.
Multiquip TRLRMPXF trailer 28 gallon tank specifications and data sheet. Printable/downloadable pdf file shown in a pop up window.
Multiquip TRLR75XF2 trailer 100 gallon tank specifications and data sheet. Printable/downloadable pdf file shown in a pop up window.
Multiquip
Related Media
WhisperWatt Generators Brochure
WhisperWatt Super-Silent Generators – 25 to 70 kVA Multi Phase – Spec Comparison Table
WhisperWatt Super-Silent Generators – 125 to 600 kVA Multi Phase – Spec Comparison Table
WhisperWatt Super-Silent Generators 6 to 36 kW Single Phase Spec Comparison Table
MQ Power Quick Reference Chart
WhisperWatt Generators ECU Controllers
PowerBalance Overview
Parallel Power Generation Overview
DEFTANK Product Brochure
MQ Power Filter Kits Flyer
Shipping
Flat rate shipping to a commercial location with a fork lift or loading dock will be added to each skid mount generator. Cost $700.00 for the first generator and $500.00 for each additional generator. Extra fees for residential and lift gate service. Call for freight quote for trailer mounted generators.
Notice: Features and equipment specifications are subject to change without notice.
Additional information
| Dimensions | 55.12 × 25.59 × 35.43 in |
|---|
