Description

Multiquip DCA15SPXU4F 15kW Single Phase Super Silent Diesel Generator

Name: Multiquip DCA15SPXU4F 15kW Single Phase Super Silent Diesel Generator
SKU: 385
Availability: InStock
Rating: 5.00 (2 reviews)

The Multiquip DCA15SPXU4F 15kW Single Phase Diesel Generator with a 1.0 power factor and 120/240 volt output. It features an electronic governor control; an easy to read analog control panel; a sound attenuated, weatherproof steel housing that is lockable and designed with a single point lifting eye. Its easy to maintain design offers quick access to all filters and drain extensions.

Features DCA15SPXU4F 15kW Single Phase Diesel Generator

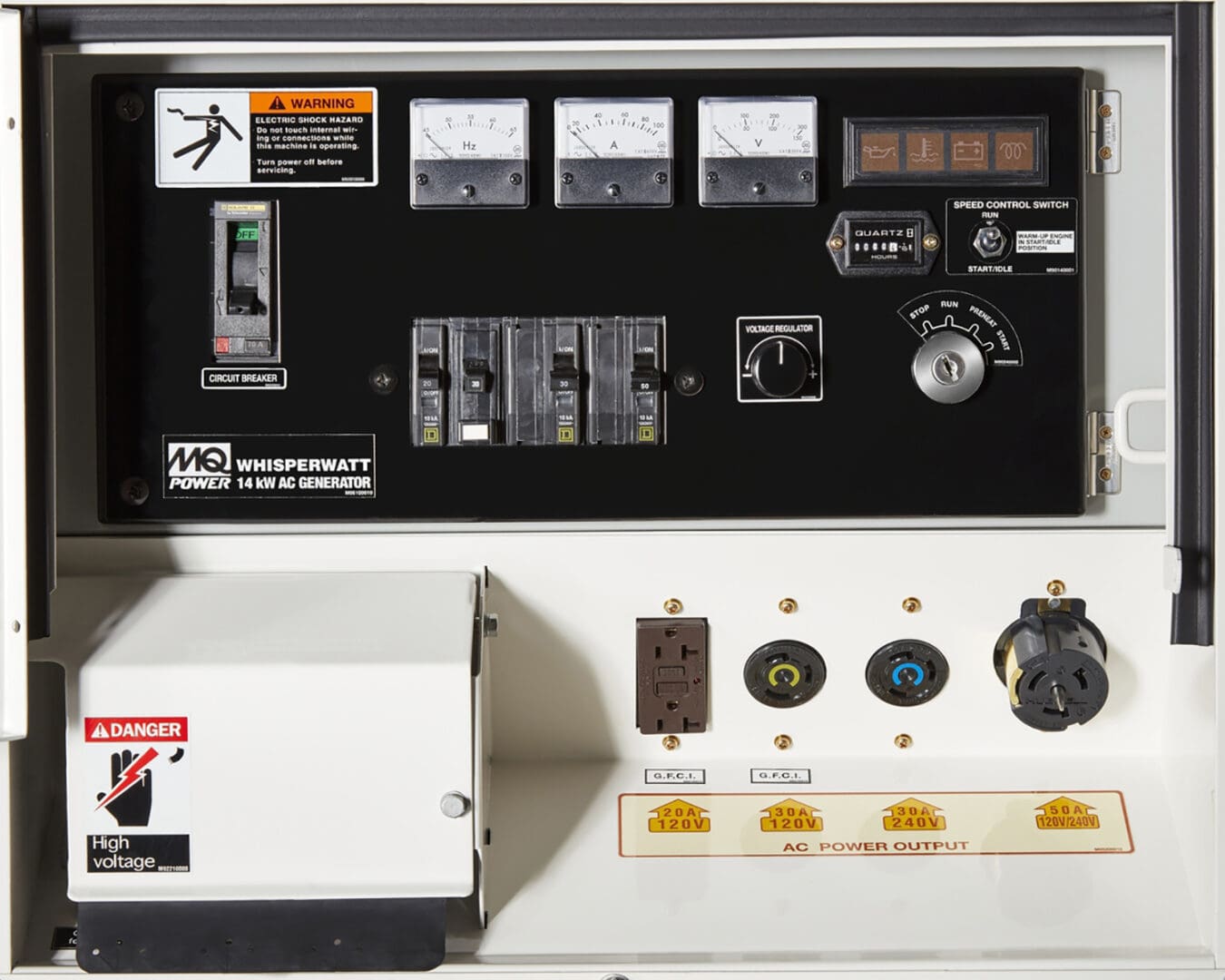

The Multiquip DCA15SPXU4F 15kW Single Phase Diesel Generator incorporates an electronic governor control maintains steady state 60 Hz within 0.25% from no load to full load. Its comprehensive analog control panel includes several instruments including an ammeter, frequency meter, AC circuit breaker and much more.

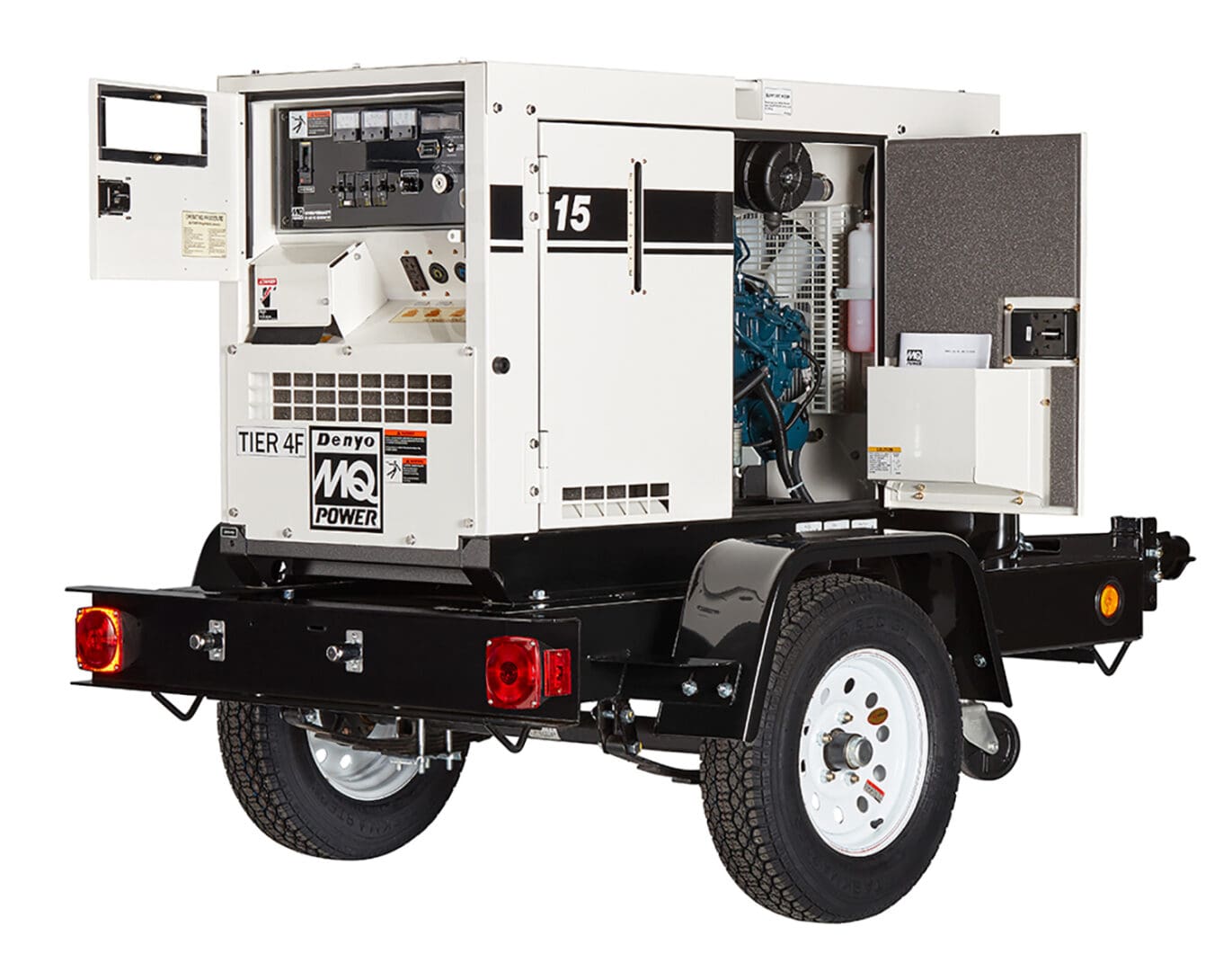

Our compact and portable single-phase WhisperWatt Super-Silent Generators come fully equipped with just about every control and convenience feature imaginable. They are great sources of power for many applications including construction and residential.

Applications

The Multiquip DCA15SPXU4F 15kW Single Phase Diesel Generator portable generator provides reliable power to meet the most demanding requirements. The Multiquip DCA15SPXU4F 15 kW Single Phase generator designed and built to withstand tough environments at construction sites, off the grid applications and provide dependable temporary power at entertainment venues and disaster recovery operations.

Specifications

Dimensions 56.3 L x 25.6 W x 35.4 H. Dry weight 1179 lbs. Wet weight 1367 lbs.

Unit Specifications

Prime Rating	14 kW
Standby Rating	14.7 kW
Generator RPM	1800
Voltage – Single Phase	120/240 V
Generator Design	Revolving field, Self-Ventilated, Drip-Proof, Single Bearing
Voltage Regulation (No Load to Full Load)	±0.5%
Power Factor	1.0
Armature Connection	Series
Excitation	Brushles with AVR
No. Poles	4-pole
Frequency	60 Hz
Frequency Regulation (steady state load)	±0.25%
Sound Level (Full Load at 23 ft.)	64 dB(A)

Engine Specifications

Make/Model	Kubota / D1503
Emissions	Tier 4 Final
Starting System	Electric
Design	4-cycle, water cooled, swirl chamber diesel engine
Gross Engine Power Output	24.8.5 bhp	18.3 kW
Fuel Tank Capacity	16.4 gal	62 L
Fuel Consumption:
Full load	1.09 gph	4.1 lph
3/4 load	0.8 gph	3.0 lph
1/2 load	0.64 gph	2.4 lph
1/4 load	0.41 gph	1.6 lph
DEF Tank Capacity	N/A gal	N/A L
Coolant Capacity	1.85 gal	7.0 L
Oil Capacity	1.48 gal	5.6 L
Battery	12V 70Ah x 1

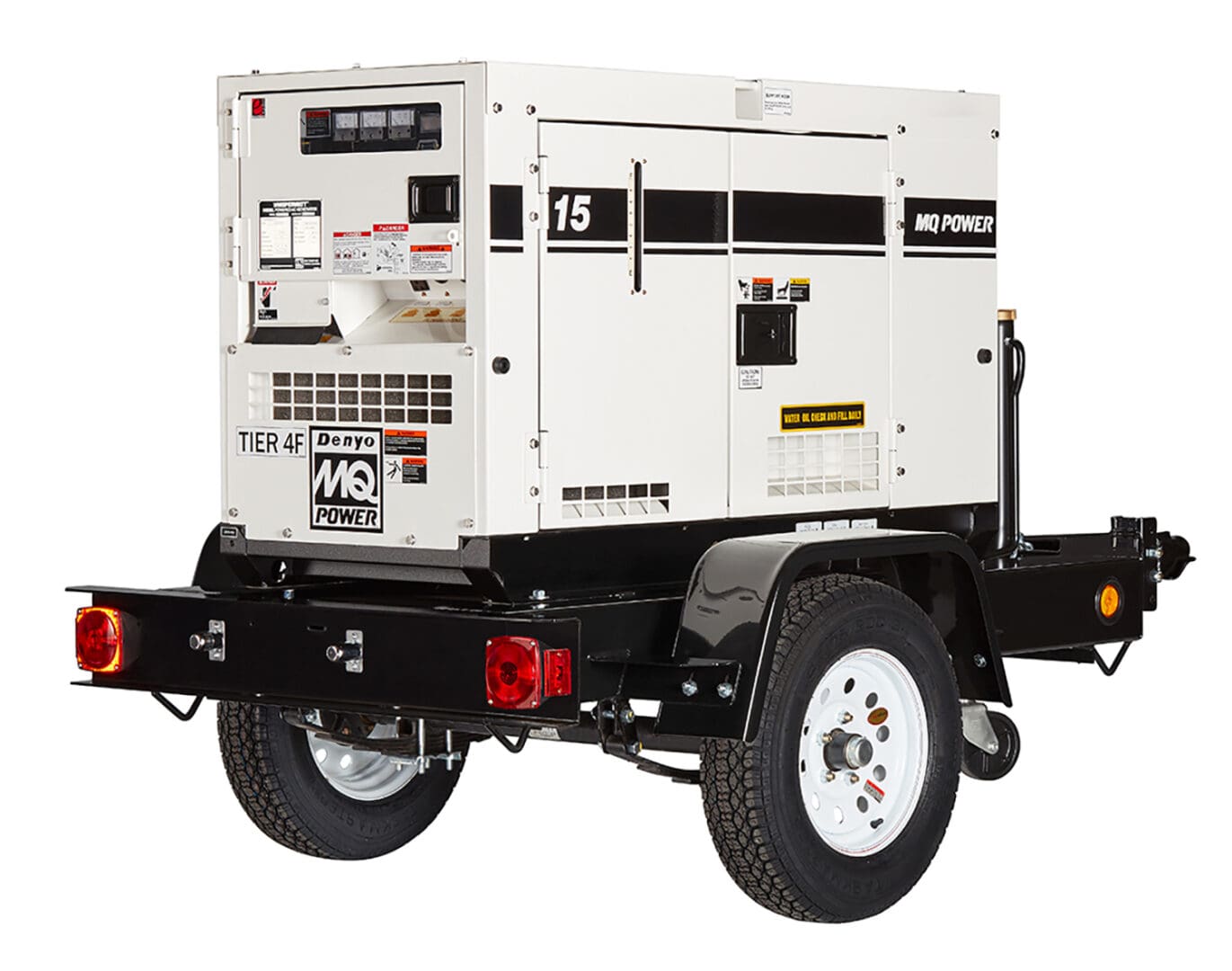

TRLRMPXF (28 gallon fuel tank) Trailer Specifications

Gross Vehicle Weight Rating (GVWR)	2,000 lb	907 kg
Gross Axle Weight Rating (GAWR) (ea.)	3,500 each lb	1,587 kg
Coupler Rating	3 in. Pintle Eye – 20,000 lb (9,072 kg); 2 in. Ball Coupler – 6,000 lb (2,722 kg); 2-5/16 in. Ball Coupler – 14,000 lb (6,350 kg)
Tire Size	ST175/80D13 LR-C
Tire Load Rating (ea.)	1,360 lb	617 kg
Wheel Bolt Pattern	5 Lug on 4.5 in
Fuel Tank Capacity	28 gal	105.99 L
Fits MQ Power Generator Models	DA7000SSA2 DCA10SPXU4C DCA15SPXU4F

TRLRMPXF (28 gallon fuel tank) Dimensions & Weights

Overall Length	98.60 in	2504.4 mm
Overall Width	55.50 in	1409.7 mm
Overall Height	22.0 in	558.8 mm
Operating Weight
With Generator Fuel	713 lb	323 kg
Without Fuel	513 lb	233 kg

Documentation

Generator can be placed on MQ Trailer Models TRLRMP, TRLRMPXF and TRLR75XF2
Multiquip DCA15SPXU4F product and specifications and data sheet. Printable/downloadable pdf file shown in a pop up window.
Multiquip TRLRMP trailer no fuel tank specifications and data sheet. Printable/downloadable pdf file shown in a pop up window.
Multiquip TRLRMPXF trailer 28 gallon tank specifications and data sheet. Printable/downloadable pdf file shown in a pop up window.
Multiquip TRLR75XF2 trailer 100 gallon tank specifications and data sheet. Printable/downloadable pdf file shown in a pop up window.
Multiquip

Shipping

Flat rate shipping to a commercial location with a fork lift or loading dock will be added to each skid mount generator. Cost $700.00 for the first generator and $500.00 for each additional generator. Extra fees for residential and lift gate service. Call for freight quote for trailer mounted generators.

Notice: Features and equipment specifications are subject to change without notice.

Additional information

Weight	1367 oz
Dimensions	56.30 × 25.59 × 35.43 in

2 reviews for Multiquip DCA15SPXU4F 15kW Single Phase Super Silent Diesel Generator

Rated 5 out of 5

Bill Carlsen – September 13, 2024

We purchased this generator for automatic power backup at our ranch. It is quiet, runs cool even at full load, and is built like a tank. If you want the highest reliability and peace of mind for your backup power get an MQ Power generator like this. You will definitely be getting your money’s worth. There’s a reason why most rental yards buy MQ generators: they keep on going despite being run hard year after year by many different types of customers.

Working with MIke at United Generator was easy and the sale and delivery were without a glitch. We did our own install, but if you are not agile with electrical stuff, including code requirements, I highly recommend getting help from Mike and his staff.

Get one of these generators, you won’t regret it.
Rated 5 out of 5

Leeks – October 20, 2025

If you are looking for a rugged, overbuilt top quality 1800 rpm diesel generator, these Multiquip Kubota powered generators are the top of the line. We purchased one for our small farm and home. Quiet, reliable and built to run day after day if needed. They aren’t the cheapest generator, but this will likely be the last generator you ever buy.

There were a few hiccups with the sale, mostly with Multiquip, not Mike’s fault. Mike followed through and we received our generator in about 7 weeks.
