Multiquip DCA20SPXU4F 20kW Single Phase Super Silent Diesel Generator
Original price was: $46,726.00.$28,259.00Current price is: $28,259.00.
Orders over $1,500.00 must be placed by phone. Call or text 707-332-0703.
Description
Multiquip DCA20SPXU4F 20kW Single Phase Super Silent Diesel Generator
The Multiquip DCA20SPXU4F 20kW Single Phase Diesel Generator with a 1.0 power factor and 120/240 volt output. Our compact and portable single-phase WhisperWatt Super-Silent Generators come fully equipped with just about every control and convenience feature imaginable. They are great sources of power for many applications including construction and residential.
Features DCA20SPXU4F

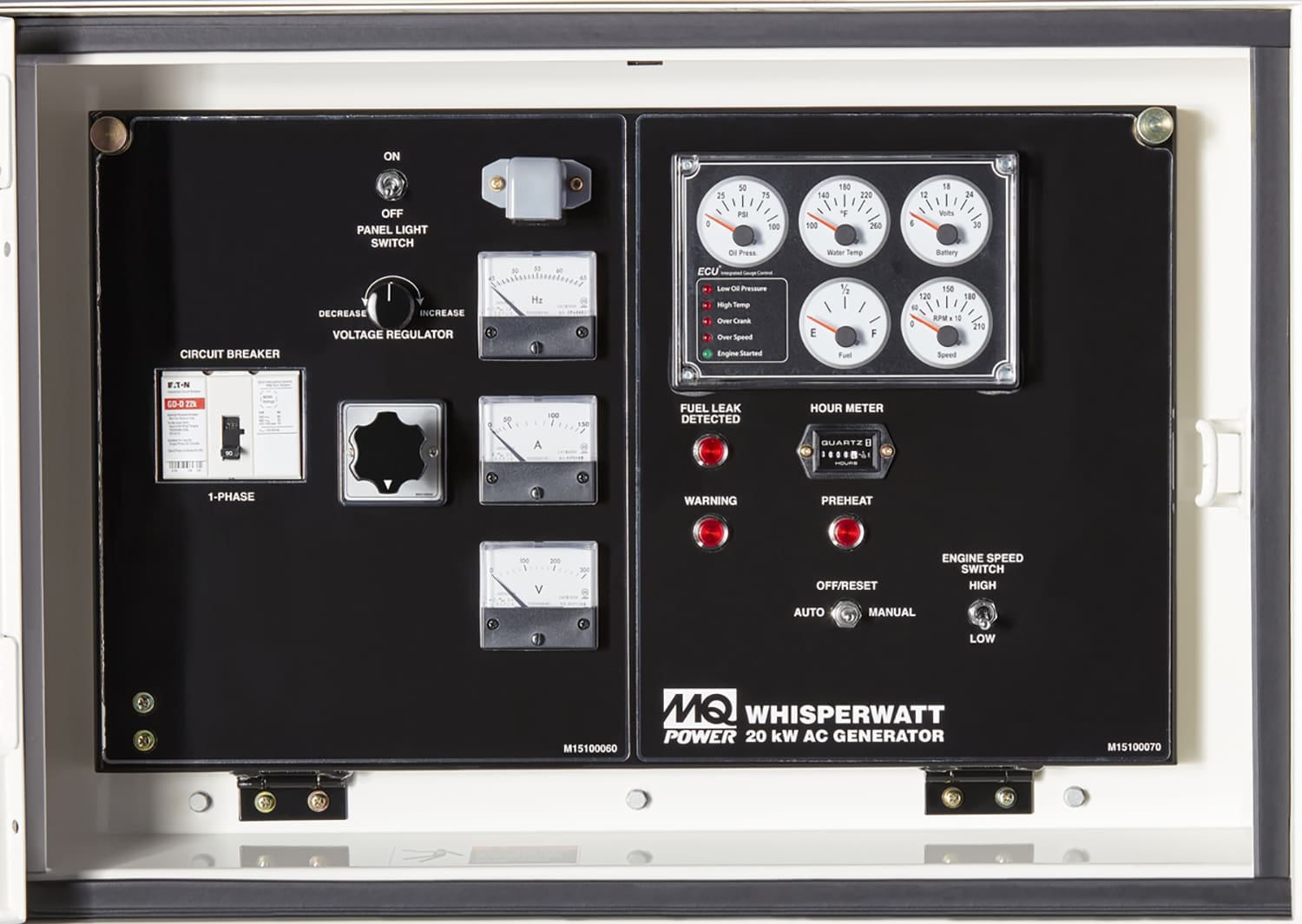

Among the many features, it includes a sound attenuated, weatherproof steel housing with an easy to maintain design that offers direct access to all filters and drain extensions. A mechanical governor maintains a steady state 60 Hz within 3-5% from no load to full load. It features an auto start stop that allows the generator to start from a remote location. The unit has an easy to read control panel that includes an ammeter, frequency meter, AC circuit breaker and other analog instrumentation.
Dimensions 71.65 L x 31 W x 49.61 H. Dry weight 1797 lbs. Wet weight 2138 lbs.
Unit Specifications
| Prime Rating | 20 kW | |
| Standby Rating | 22 kW | |
| Generator RPM | 1800 | |
| Voltage – Single Phase | 120/240 V | |
| Generator Design | Revolving field, Self-ventilated, Drip-proof, Single bearing | |
| Voltage Regulation (No Load to Full Load) | ±0.5% | |
| Power Factor | Series | |
| Armature Connection | Series | |
| Excitation | Brushles with AVR | |
| No. Poles | 4-pole | |
| Frequency | 60 Hz | |
| Frequency Regulation (steady state load) | ±3-5% | |
| Sound Level (Full Load at 23 ft.) | 65 dB(A) | |
Engine Specifications
| Make/Model | Isuzu 4L32T | |
| Emissions | Tier 4 Final | |
| Starting System | Electric | |
| Design | 4-Cycle Water-Cooled, Direct Injection, Charge Air Cooled, EGR, DOC | |
| Gross Engine Power Output | 40.2 bhp | 29.9 kW |
| Fuel Tank Capacity | 41.7 gal | 158 L |
| Fuel Consumption: | ||
| Full load | 1.62 gph | 6.1 lph |
| 3/4 load | 1.26 gph | 4.7 lph |
| 1/2 load | 0.94 gph | 3.5 lph |
| 1/4 load | 0.67 gph | 2.5 lph |
| DEF Tank Capacity | N/A gal | N/A L |
| Coolant Capacity | 2.3 gal | 8.8 L |
| Oil Capacity | 2.28 gal | 10.5 L |
| Battery | 12V 53Ah x 1 | |
TRLR75XF2H (100 gallon tank) Specifications
| Gross Vehicle Weight Rating (GVWR) | 7,000 lb | 3,175 kg |
| Gross Axle Weight Rating (GAWR) (ea.) | 3,500 each lb | 1,588 kg |
| Coupler Rating | 3 in. Pintle Eye – 20,000 lb (9,072 kg); 2 in. Ball Coupler – 10,000 lb (4,536 kg); 2-5/16 in. Ball Coupler – 14,000 lb (6,350 kg) | |
| Tire Size | ST205/75D15 LR-C | |
| Tire Load Rating (ea.) | 1,820 lbs/826 kg (ea.) | |
| Wheel Bolt Pattern | 5 Lug on 4.5 in | |
| Fuel Tank Capacity | 100 gal | N/A L |
| Fits MQ Power Generator Models | DCA20SPX DCA25SSI DCA36SPX DCA45SSI DCA56SPX DCA70SSI |
|
TRLR75XF2H (100 gallon tank) Dimensions & Weights
| Overall Length | 151 in | N/A mm |
| Overall Width | 69 in | N/A mm |
| Overall Height | 23.6 in | N/A mm |
| Operating Weight | ||
| With Generator Fuel | 2,077 lb | N/A kg |
| Without Fuel | 1.366 lb | N/A kg |
Documentation

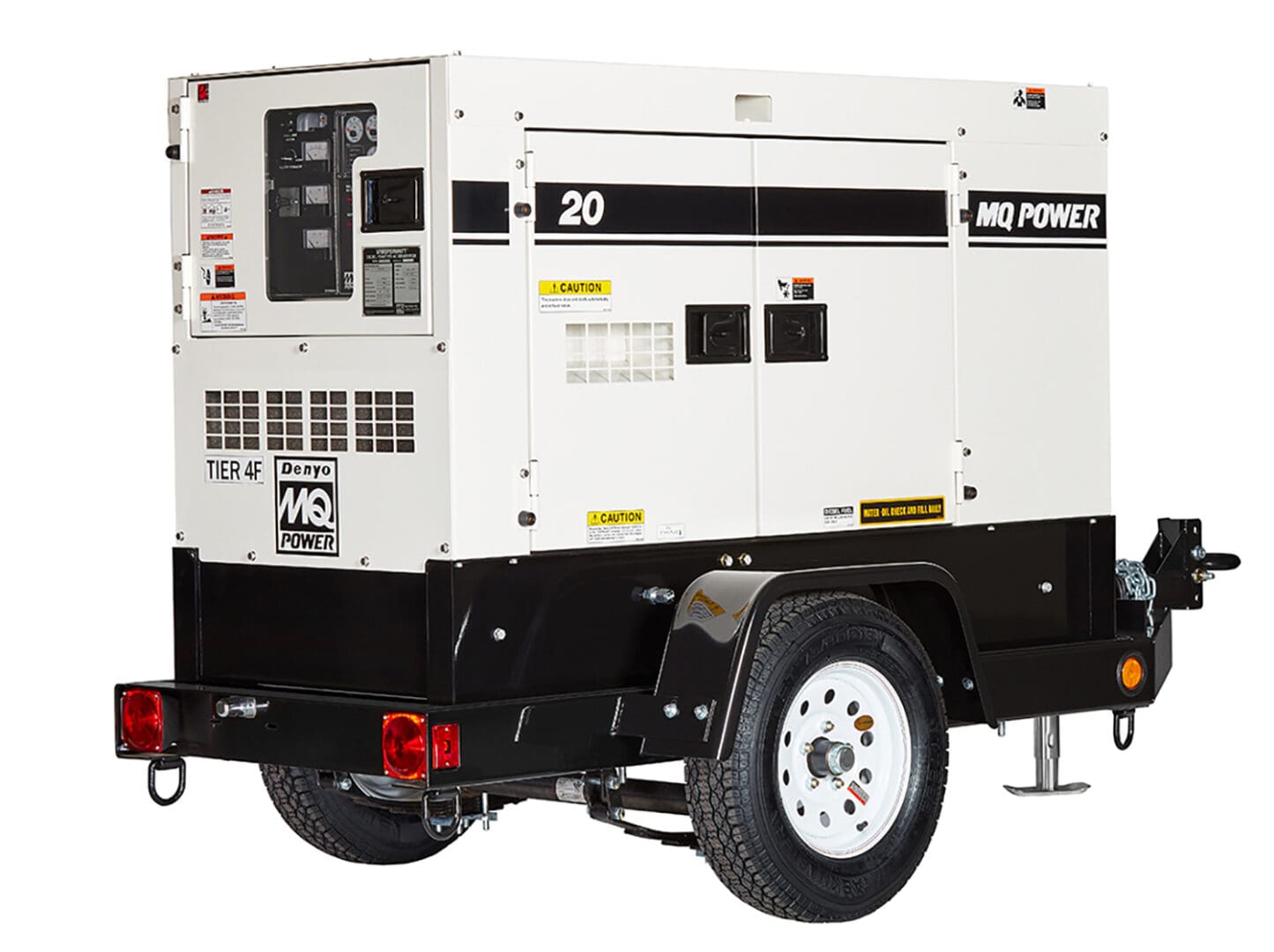

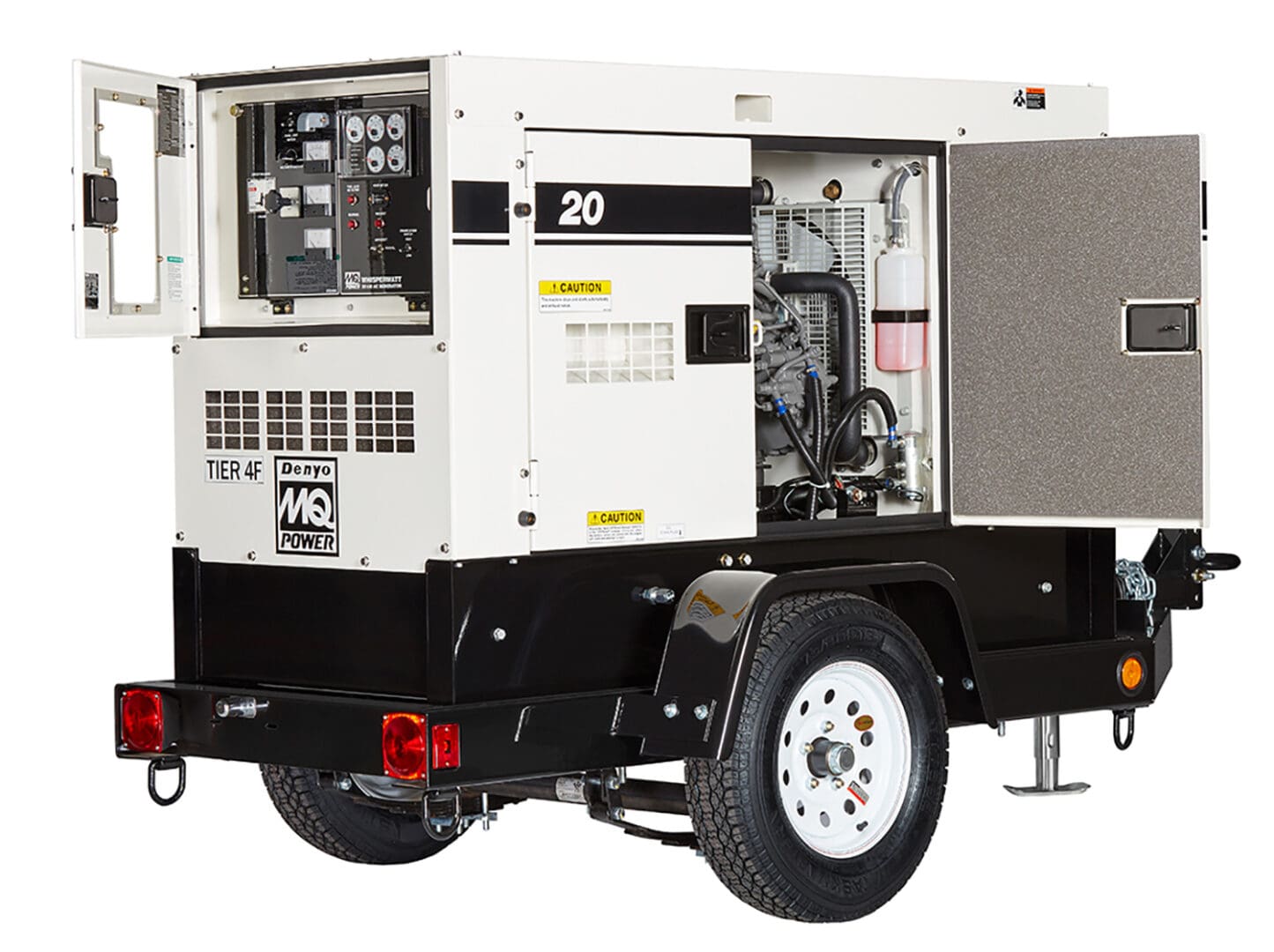

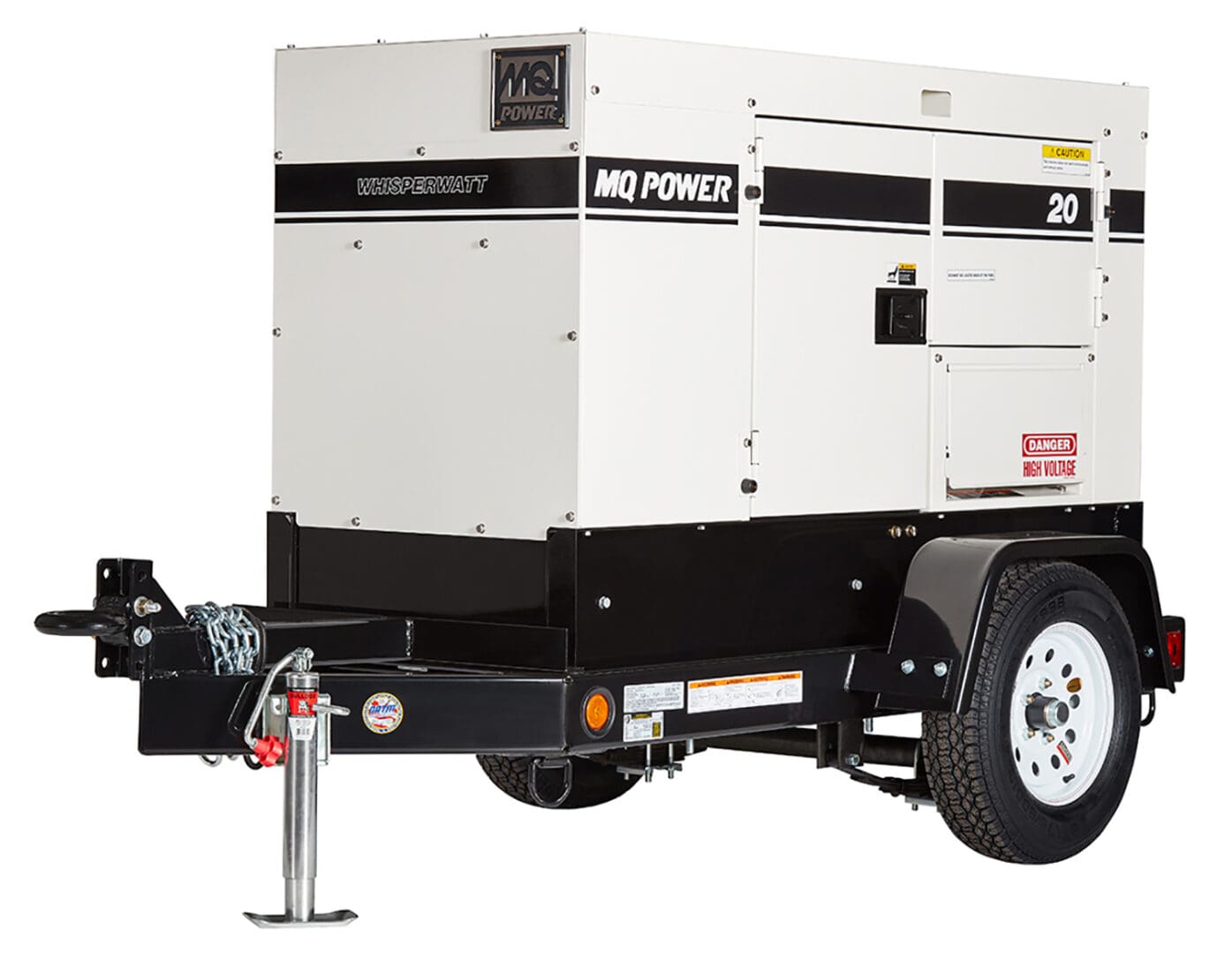

Generator can be placed on MQ Trailer Models TRL25US and TRLR75XF2
Multiquip DCA20SPXU4F product and specifications and data sheet. Printable/downloadable pdf file shown in a pop up window.
Multiquip TRLR25US traier no fuel tank product and specifications and data sheet. Printable/downloadable pdf file shown in a pop up window.
Multiquip TRLR75XF2 trailer 100 gallon tank specifications and data sheet. Printable/downloadable pdf file shown in a pop up window.
Multiquip
Related Media
WhisperWatt Generators Brochure
WhisperWatt Super-Silent Generators – 25 to 70 kVA Multi Phase – Spec Comparison Table
WhisperWatt Super-Silent Generators – 125 to 600 kVA Multi Phase – Spec Comparison Table
WhisperWatt Super-Silent Generators 6 to 36 kW Single Phase Spec Comparison Table
MQ Power Quick Reference Chart
WhisperWatt Generators ECU Controllers
PowerBalance Overview
Parallel Power Generation Overview
DEFTANK Product Brochure
MQ Power Filter Kits Flyer
Shipping
Flat rate shipping to a commercial location with a fork lift or loading dock will be added to each skid mount generator. Cost $890.00 for the first generator and $700.00 for each additional generator. Extra fees for residential and lift gate service. Call for freight quote for trailer mounted generators.
Notice: Features and equipment specifications are subject to change without notice.
Additional information
| Weight | 2137 oz |
|---|---|
| Dimensions | 71.65 × 31.1 × 49.61 in |
